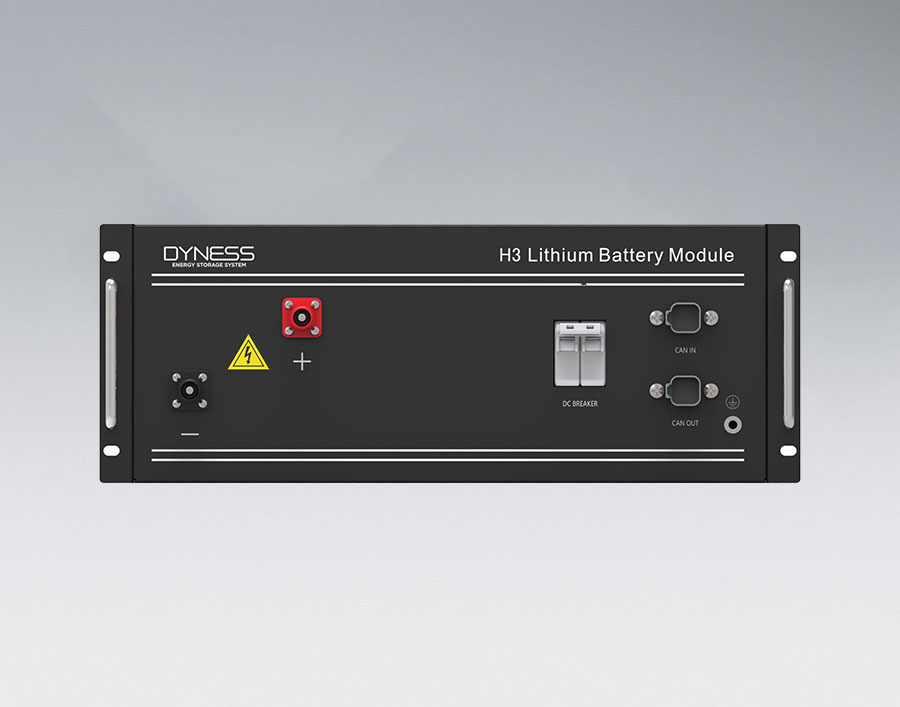

H3 96V/37Ah (3.55kWh)
Performance & Specification
Features and advantages
LiFePO4 battery, Safe, Longer life span
Modular design, Easy to stack, Quick installation
Flexible in series to acheive higher voltage
Natural cooling with optional heat/fan configuration
Wide temperature range of -20～50℃
Specification
|
Model
|
H3
|
|
Battery Type
|
LiFePO4
|
|
Usable Battery Energy
|
3.55kWh
|
|
Nominal Capacity
|
37Ah
|
|
Nominal Voltage
|
96V
|
|
Working Voltage
|
75～109V
|
|
Nominal Power Output
|
1.77kW
|
|
Max.Power Output
|
3.55kW
|
|
Recommend Charging Current
|
18.5A
|
|
Recommend Discharging Current
|
18.5A
|
|
Net Weight
|
37Kg
|
|
Dimension [W*D*H]
|
400*434*177mm
|
|
Calendar Life [1]
|
6000 cycles
|
|
Configuration
|
Up to 26.88kWh total energy, 8 modules series at most
|
|
Communication
|
CAN
|
|
Warranty
|
10 Years
|
[1] Test conditions:0.2C Charging/Discharging,@25℃,80% Dod
