F-2.5 48V/50Ah (2.40kWh)
F-5.0 48V/100Ah (4.80kWh)
F-7.5 48V/150Ah (7.20kWh)
F-10.0 48V/200Ah (9.60kWh)
LiFePO4

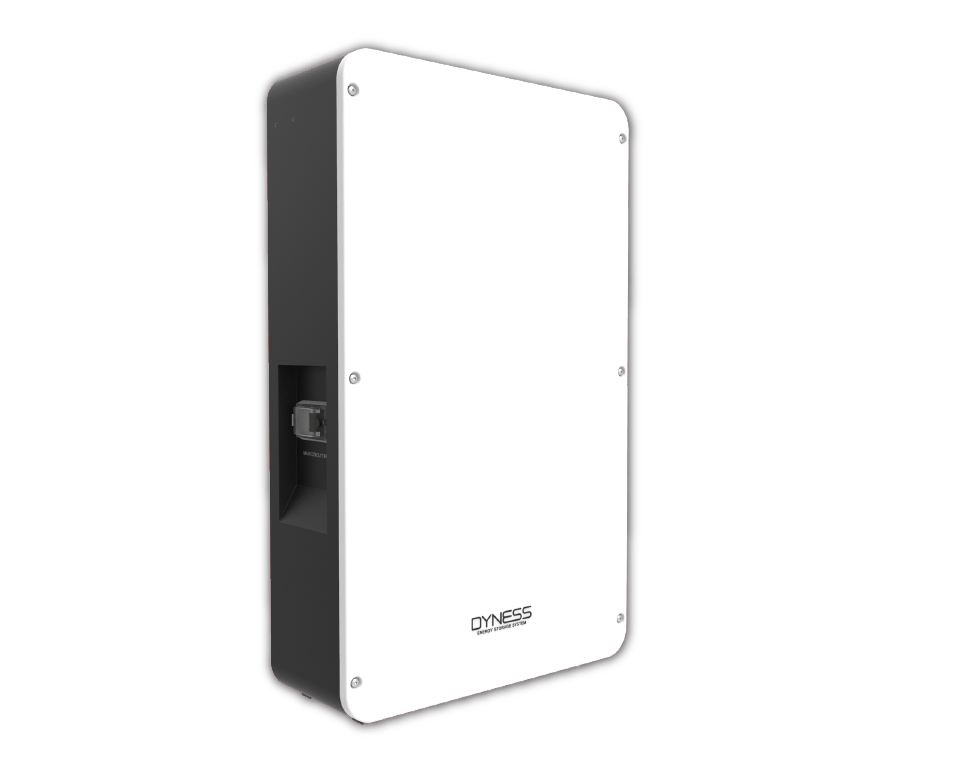

Powerbox adopts LiFePO4 chemistry battery with safety performance and long life time,which offers you four capacities to meet your more requirements.
Compact Size & Light Weight
Weight/Kg 47 / 69 / 91 / 113
Power ( 2.4 / 4.8 / 7.2 / 9.6kWh )

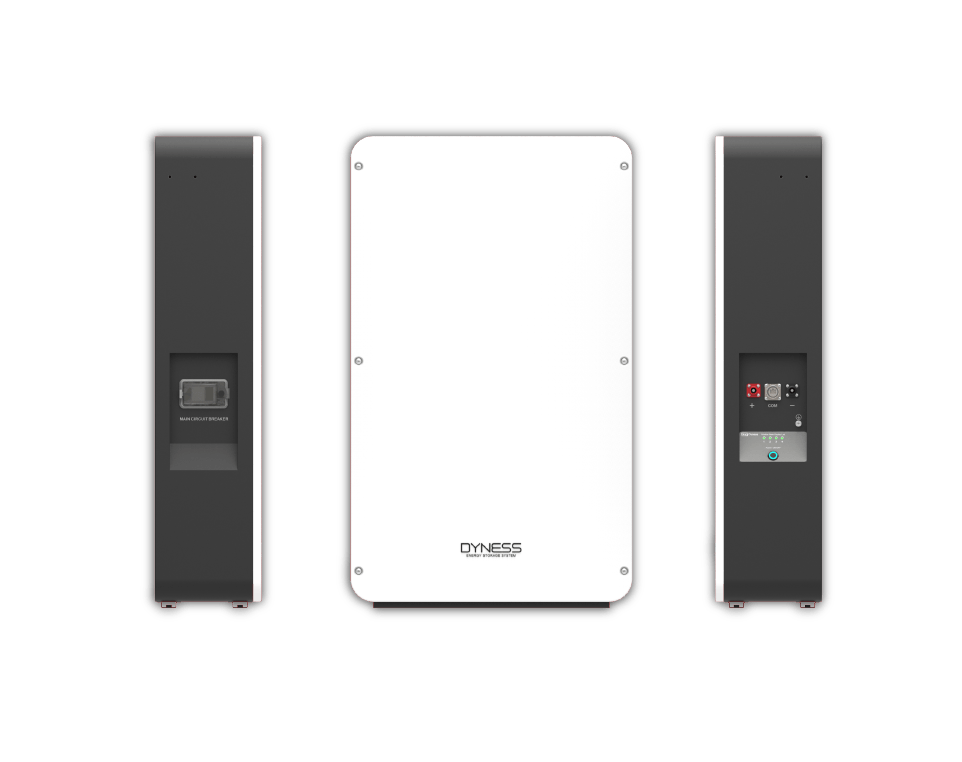

Dimension/mm 928 x 555 x 210
Practical pulling ear design improves operation convenience
Modular Design & Expandable System
Modular design allowing extension whenever wanted, allows for expansion from 2.4KWh to 9.6KWh system, and can parallel to get bigger energy capacity with no limits. With such flexibility, Powerbox makes an excellent solution for households of multiple sizes.
| Model | F-2.5 | F-5.0 | F-7.5 | F-10.0 |
| Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Module | 1 Module | 2 Modules | 3 Modules | 4 Modules |
| Energy | 2.4kWh | 4.8 kWh | 7.2kWh | 9.6kWh |
High Power Output & Usable Energy Ratio
Dyness Battery Storage System has high output power and usable energy ratio, the system can reach 1C continuously and 2C at peak to support critical requirement such as A/C.They can reach 95% usable ratio
|
Model
|
Powerbox
|
|||
|
Battery Type
|
LiFePO4
|
|||
|
Battery Module
|
1 Module
|
2 Module
|
3 Module
|
4 Module
|
|
Battery Capacity [Ah]
|
50
|
100
|
150
|
200
|
|
Nominal Battery Energy [kWh]
|
2.4
|
4.8
|
7.2
|
9.6
|
|
Mox Output Power [kW]
|
2.4
|
4.8
|
4.8
|
4.8
|
|
Net Weight [Kg]
|
47
|
69
|
91
|
113
|
|
Dimension [H*W*D,MM]
|
928*555*210
|
|||
|
Working Voltage [V]
|
40.5～54
|
|||
|
Operating Temp.Range [℃]
|
-20～50
|
|||
|
Calendar Life [Cycles] [1]
|
6000
|
|||
|
Nominal Voltage [V]
|
48
|
|||
|
Protection Level
|
IP65
|
|||
|
Communication
|
CAN / RS485 / DRY CONTACT
|
|||
|
Certification & Safety Standard
|
TUV/CE/EN62619/IEC62040/UN38.3/CEC Accredited
|
|||
|
Scalabilitty [kWh]
|
Up to 3 units to parallel
|
|||
|
Compatible Inverters
|
Goodwe Victron Imeon Solis Luxpower Growatt GMDE Sofar Voltronic Deye More brands will be announced
|
|||
|
Warranty
|
10 Years
|
|||
|
Warranty Document Supplied
|
Yes
|
|||
|
Color
|
White
|
|||
|
Alarms
|
Overcharge Overdischarge Overcurrent Overtemperature Short Circuit
|
|||
|
Pros
|
Can be used in both off-grid and hybrid setups,compact design,modular expansion
|
|||
|
Monitoring & Protection
|
Each Module has BMS,breaker embedded in system
|
|||
