H3-7 192V/37Ah (7.10kWh)
H3-10 288V/37Ah (10.65kWh)
H3-14 384V/37Ah (14.20kWh)
H3-17 480V/37Ah (17.76kWh)
H3-21 576V/37Ah (21.30kWh)
H3-24 672V/37Ah (24.86kWh)
H3-27 876V/37Ah (28.42kWh)
Performance & Specification
Features and advantages
LiFePO4 energy storage system,linger life span
Safest kind battery with modular design
Quick installation and wide operation temperature range
Flexible control,cover all needs in commercial fields
Keep you powered on all teh time,cut the charges now
Specification
|
System List
|

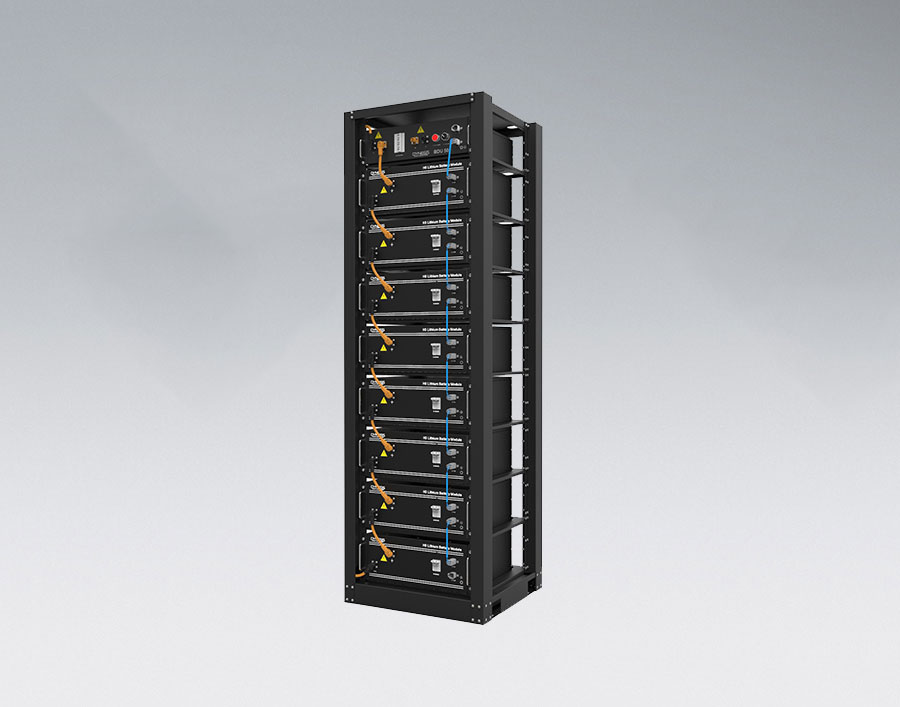

RACK H3-28
|
RACK H3-24
|
RACK H3-21
|
RACK H3-17
|
RACK H3-14
|
RACK H3-10
|
RACK H3-7
|
|
Module Type
|
LFP
|
LFP
|
LFP
|
LFP
|
LFP
|
LFP
|
LFP
|
|
Total Storing Energy [kWh]
|
28.42
|
24.86
|
21.31
|
17.76
|
14.21
|
10.66
|
7.1
|
|
Module configuration
|
8 Series
|
7 Series
|
6 Series
|
5 Series
|
4 Series
|
3 Series
|
2 Series
|
|
Voltage Range [Vdc]
|
672*876
|
588*766
|
504*657
|
420*547
|
336*438
|
252*328
|
168*219
|
|
Battery System Voltage [Vdc]
|
768
|
672
|
576
|
480
|
384
|
288
|
192
|
|
Battery System Capacity [Ah]
|
37
|
37
|
37
|
37
|
37
|
37
|
37
|
|
Battery System Charge Voltage [Vdc]
|
876
|
766.5
|
657
|
547.5
|
438
|
328.5
|
219
|
|
Battery System Charge Current [Standard]
|
7.4
|
7.4
|
7.4
|
7.4
|
7.4
|
7.4
|
7.4
|
|
Battery System Charge Current [Normal]
|
18.5
|
18.5
|
18.5
|
18.5
|
18.5
|
18.5
|
18.5
|
|
Battery System Charge Current (Max.)
|
37
|
37
|
37
|
37
|
37
|
37
|
37
|
|
Battery System Discharge Voltage (Min.) [Vdc]
|
672
|
588
|
504
|
420
|
336
|
252
|
168
|
|
Battery System Discharge Current (Standard)
|
7.4
|
7.4
|
7.4
|
7.4
|
7.4
|
7.4
|
7.4
|
|
Battery System Discharge Current (Normal) [A]
|
18.5
|
18.5
|
18.5
|
18.5
|
18.5
|
18.5
|
18.5
|
|
Battery System Discharge Current (Max.) [A]
|
37
|
37
|
37
|
37
|
37
|
37
|
37
|
|
Discharge condition [℃]
|
0～50
|
0～50
|
0～50
|
0～50
|
0～50
|
0～50
|
0～50
|
|
Charge condition [℃]
|
0～50
|
0～50
|
0～50
|
0～50
|
0～50
|
0～50
|
0～50
|
|
Max.Discharge Power [kW]
|
28.4
|
24.8
|
21.3
|
17.7
|
14.2
|
10.6
|
7.1
|
|
Enclosure Protection (IP)
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
IP20
|
|
Size [mm](H*D*W)
|
1900*600
*560 |
1700*600
*560 |
1500*600
*560 |
1300*600
*560 |
1100*600
*560 |
900*600
*560 |
700*600
*560 |
|
Weight [kg]
|
366
|
322
|
278
|
234
|
190
|
146
|
102
|
|
Battery Module Name
|
H3
|
H3
|
H3
|
H3
|
H3
|
H3
|
H3
|
|
Battery Module Quantity(pcs)
|
8
|
7
|
6
|
5
|
4
|
3
|
2
|
|
Battery Controller Type
|
BDU5O
|
BDU5O
|
BDU5O
|
BDU5O
|
BDU5O
|
BDU5O
|
BDU5O
|
