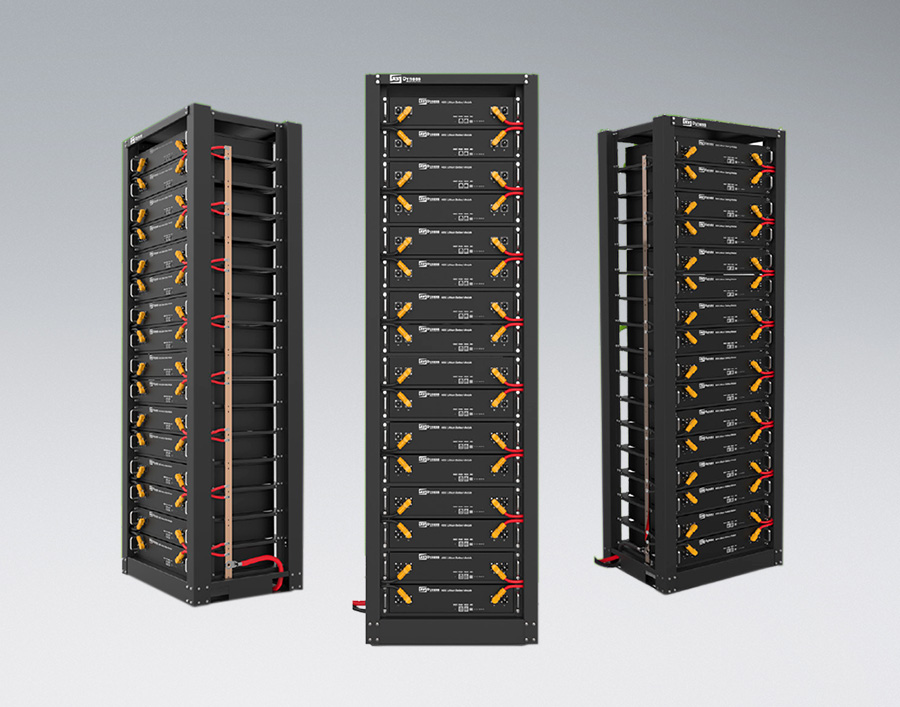

Rack 38 48V/800Ah (38.40kWh)
Performance & Specification
Features and advantages
LiFePO4 energy storage system,linger life span
Safest kind battery with modular design
Quick installation and wide operation temperature range
Flexible control,cover all needs in commercial fields
Keep you powered on all teh time,cut the charges now
Specification
|
Model
|
Dyness Rack System
|
|
Nominal Voltage
|
48V
|
|
Operating vol.Range
|
40.5-54V
|
|
Nominal Capacity
|
800Ah
|
|
Nominal Battery Energy [1]
|
38.4kWh
|
|
Max Charge Current
|
50-800A can set
|
|
Protection Level
|
IP20
|
|
Operating Temperature Range
|
-20～40℃
|
|
Humidity
|
10%～90% no condensing
|
|
Noise
|
≤70dB
|
|
Cabinet Dimension [1]
|
560*600*1900mm
|
|
Weight
|
430Kg
|
|
Communication
|
CAN / RS485 / DRY CONTACT
|
|
Certification & Safety Standard
|
TUV/CE/EN62619/IEC62040/UN38.3/CEC Accredited
|
|
Compatible Inverters
|
Goodwe Victron Imeon Solis Luxpower Growatt GMDE Sofar Voltronic Deye More brands will be announced
|
|
Monitoring & Protection
|
Each Module has BMS,breaker embedded in system
|
|
Scalability
|
Easily Customized
|
|
Alarms
|
Overcharge Overdischarge Overcurrent Overtemperature Short Circuit
|
|
Warranty
|
10 Years
|
[1] The energy and cabinet size can be designed according to the power supply time required by customer.
