Dyness B4850 Module

B4850 48V/50Ah (2.40kWh)

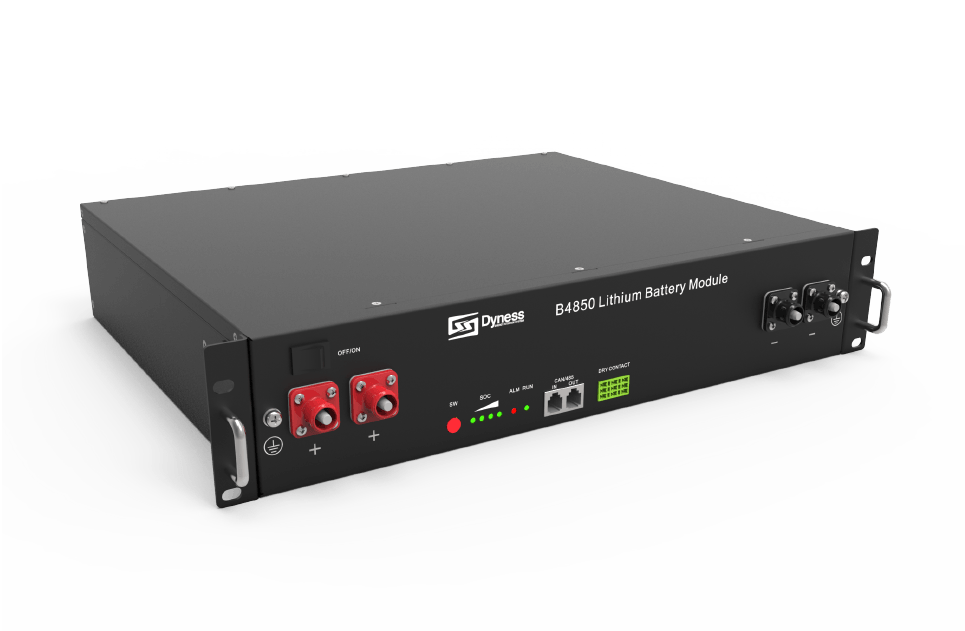

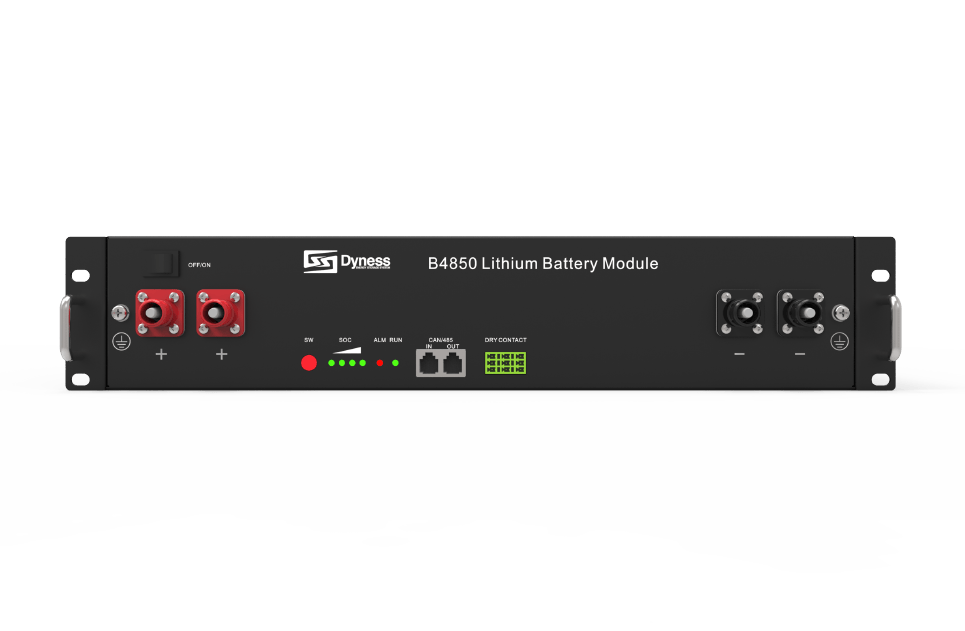

B4850 Lithium Battery Module

chemistry-lab

Compact Design

Weight/Kg 22

Dimension/mm 480 * 360 * 90

Practical pulling ear design improves operation convenience

Save

Save lithium iron phosphate battery cell

Compact size ultralight module

chemistry-lab

Intelligent management

Dyness battery module is equipped with intelligent BMS for each battery pack to manage modules effectively.

Compared with the traditional module, B4850 offers best energy storage reliability with longer life span.

Application

The Dyness battry B4850 module is widely used in energy storage and electrical products. Household energy storage systems; Centralized power station energy storage system.

Specification

Model
B4850
Battery Type
LiFePO4
Nominal Battery Energy
2.4kWh
Nominal Capacity
50Ah
Nominal Voltage
48V
Charging Cut-off vol.
54V
Discharging End-off vol.
40.5V
Recommend C Rate
0.5C
Continuous Max C Rate
1C
Net Weight
22Kg
Dimension[W*D*H]
480*360*90MM
Charging Temp.Range
0~50℃
Calendar Life[1]
6000 Cycles
Protection Level
IP20
Communication
CAN / RS485 / DRY CONTACT
Warranty
10 Years

[1] Test conditions:0.2C Charging/Discharging,@25℃,80% Dod
