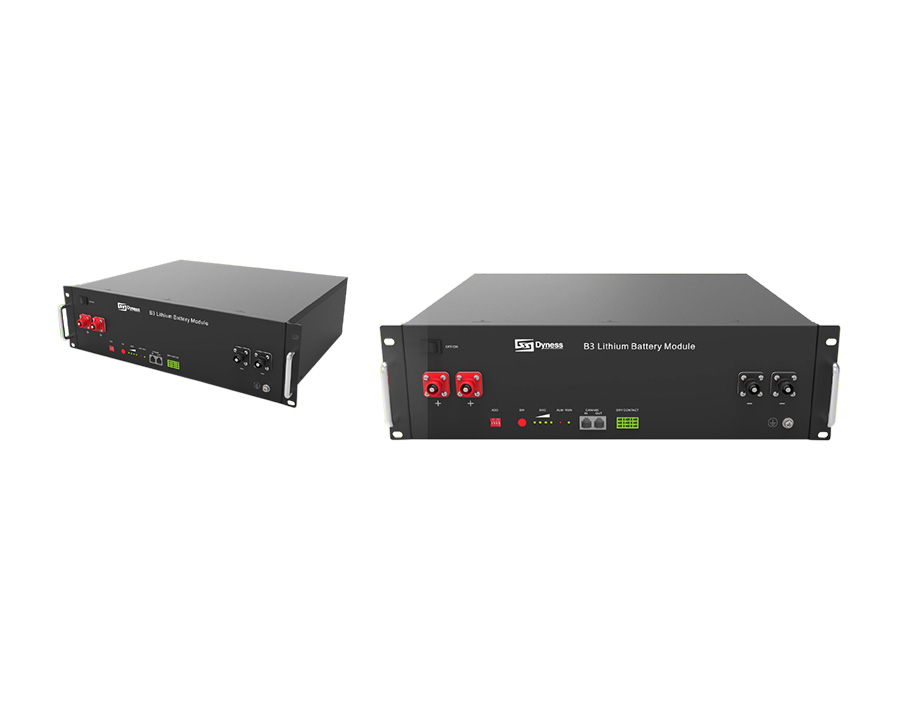

B3 Lithium Battery Module

B3 48V/75Ah (3.60kWh)

chemistry-lab

Performance & Specification
Features and advantages

iFePO4 battery, Safe, Longer life span

Modular design, Easy to stack, Quick installation

Larger energy capacity

Natural cooling with optional heat/fan configuration

Wide temperature range of -20~50℃

chemistry-lab

Intelligent management

Dyness battery module is equipped with intelligent BMS for each battery pack to manage modules effectively.

Compared with the traditional module, B4850 offers best energy storage reliability with longer life span.

Application

The Dyness battry B4850 module is widely used in energy storage and electrical products. Household energy storage systems; Centralized power station energy storage system.

Specification

Model
B3
Nominal Energy
3.6kWh
Nominal Capacity
75Ah
Nominal Voltage
48V
Max. Continuous Discharge Current
50A
Max. Continuous Charge Current
50A
Charging Cut-off vol.
54A
Discharging End-off vol.
40.5A
Net Weight
30Kg
Dimension[W*D*H]
400*360*133.5mm
Protection Level
IP20
Calendar Life[1]
6000 Cycles
Charging Temperature Range
0~50℃
Discharging Temperature Range
-20~50℃
Communication
CAN / RS485
Configuration
40 modules parallel at most
Recommend C Rate
0.5C
Warranty
10year

[1] Test conditions:0.2C Charging/Discharging,@25℃,80% Dod
